Mechanical Seals

SB Single Seal

API 682 4th Edition Category 2&3
Seal Type A (Stationary)
Configuration 1CW-FL (Contacting Wet – FLoating throttle bushing)

Product Description

  • API 682 Category 2 and 3, Type A, Arrangement 1 seal
  • Single seal configuration
  • Balanced design
  • Independent of direction of rotation
  • Cartridge construction
  • Stationary design with multiple springs
  • Designed with integrated pumping device for increased efficiency in circulation
  • Robust construction with shrink-fitted seal face
  • Heavy duty design of solid seat

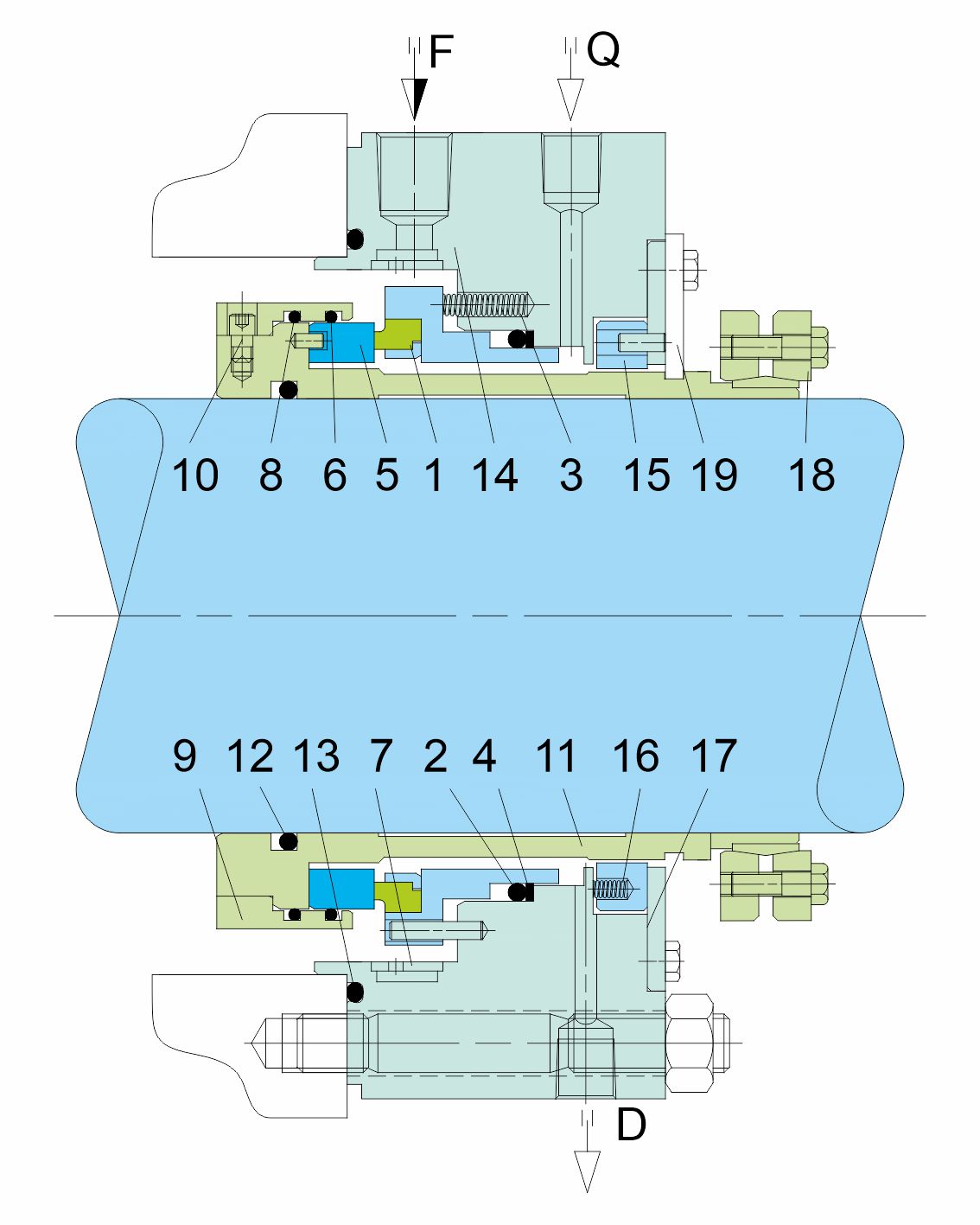

Details
Item No. Description
1 Seal Ring
2,6,8,12,13 O-ring
3,16, Spring
4 Back-up ring
5 Mating ring
7 Multi-flow distributor
9 Sleeve
10 Set screw
11 Shaft sleeve
14 Gland
15 Throttle bushing
17 Washer
18 Shrink Disc
19 Setting plate
20 Hexagon bolt
F Flush
Q Quench
D Drain
