Mechanical Seals

B750VK-D Dual Seal

API 682 4th Edition Category 2&3
Seal Type A (Rotating)
Configuration 3CW-BB (Contacting Wet – Back-to-Back)

Product Description

  • API 682 Category 2 and 3, Type A, Arrangement 3 seal
  • Dual seal in back-to-back configuration
  • Balanced design
  • Independent of direction of rotation
  • Cartridge construction
  • Pumping device available for increased efficiency in circulation
  • Rotary unit with multiple springs
  • Can accommodate reverse pressure

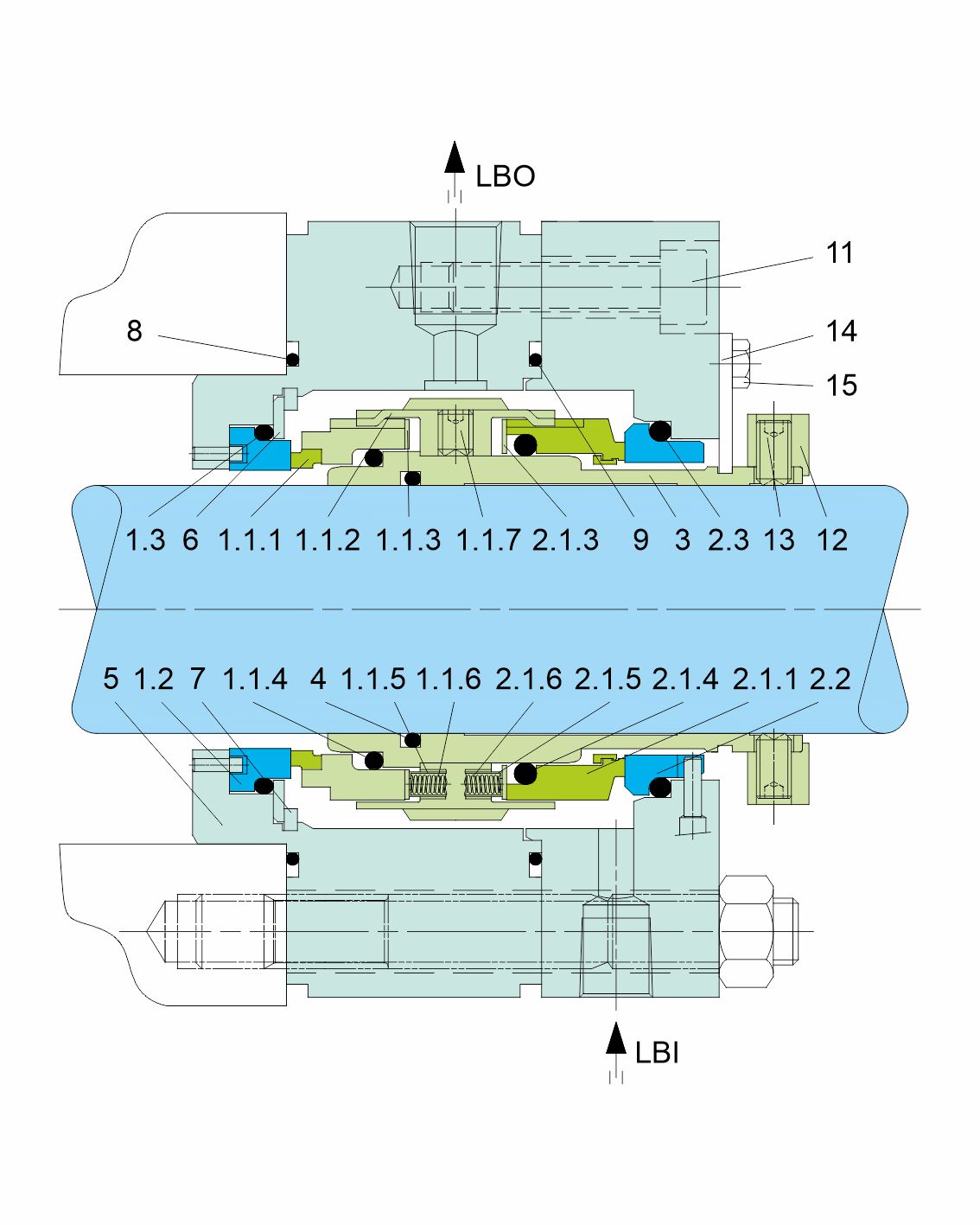

Details
Item No. Description
1.1.1,2.1.1 Seal ring
1.1.2,2.1.2 Driver
1.1.3,2.1.3 Thrust ring
1.1.4,1.3,2.1.4,2.3,4,8,9 O-ring
1.1.5,2.1.5 Spring sleeve
1.1.6,2.1.6 Spring
1.1.7,2.1.7 Set screw
1.2,2.2 Mating ring
3 Shaft sleeve
5 Adapter
6 Washer
7 Retaining ring
10 Cover
11 HSH cap screw
12 Set ring
13 Set Screw
14 Assembly plate
15 Hexagonal bolt
LBI Liquid Barrier IN
LBO Liquid Barrier OUT
