Mechanical Seals

SPX

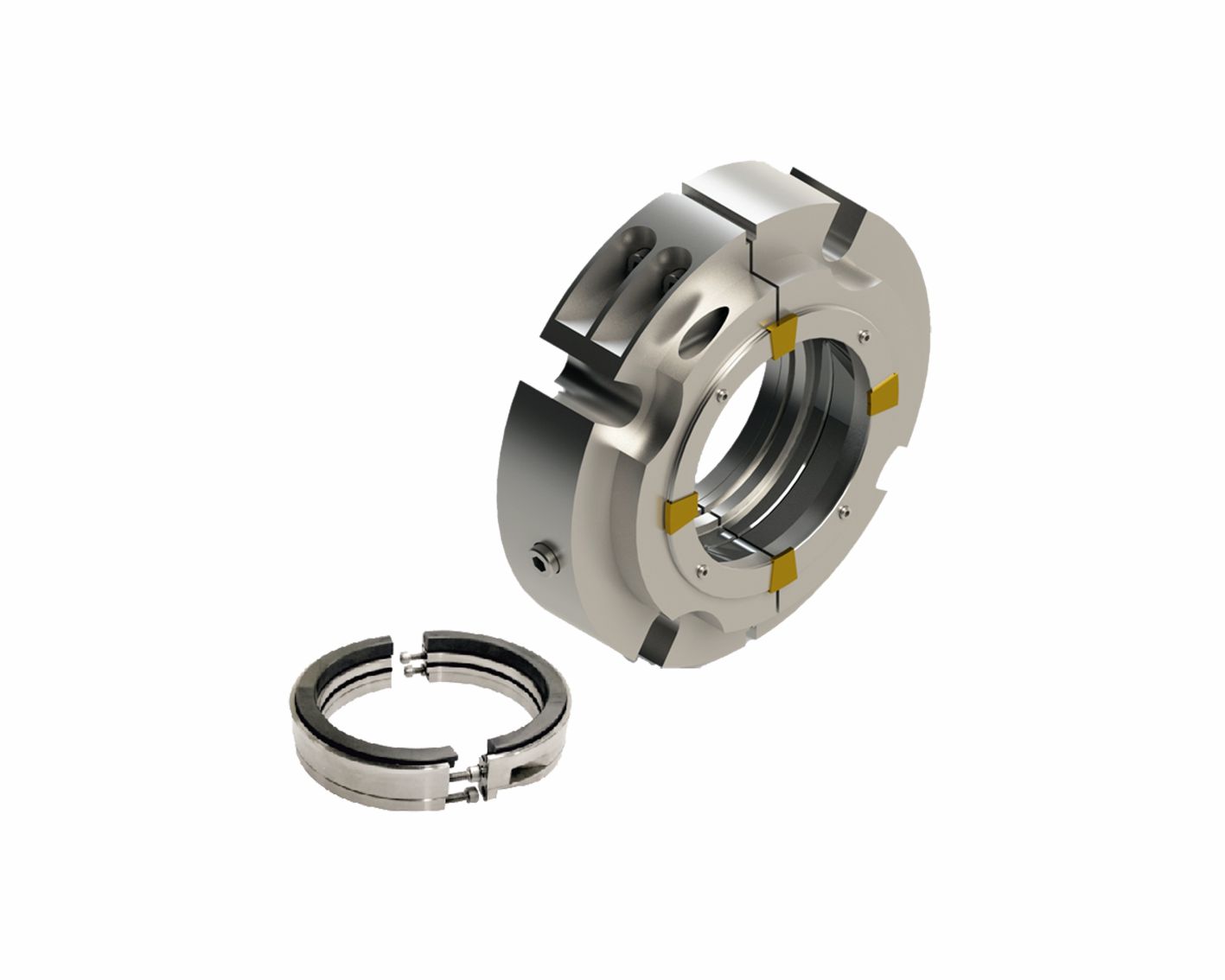

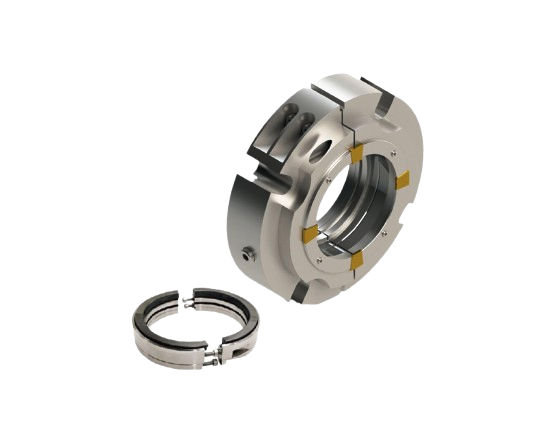

Product Description

  • Single seal in split configuration
  • Balanced design
  • Independent of direction of rotation
  • For plain shafts
  • Semi-cartridge construction
  • Built-in flushing connections
  • Designed with external pressurization
  • Factory assembled fully split single seal, 2 x 2 segments
  • Stationary design with multiple springs

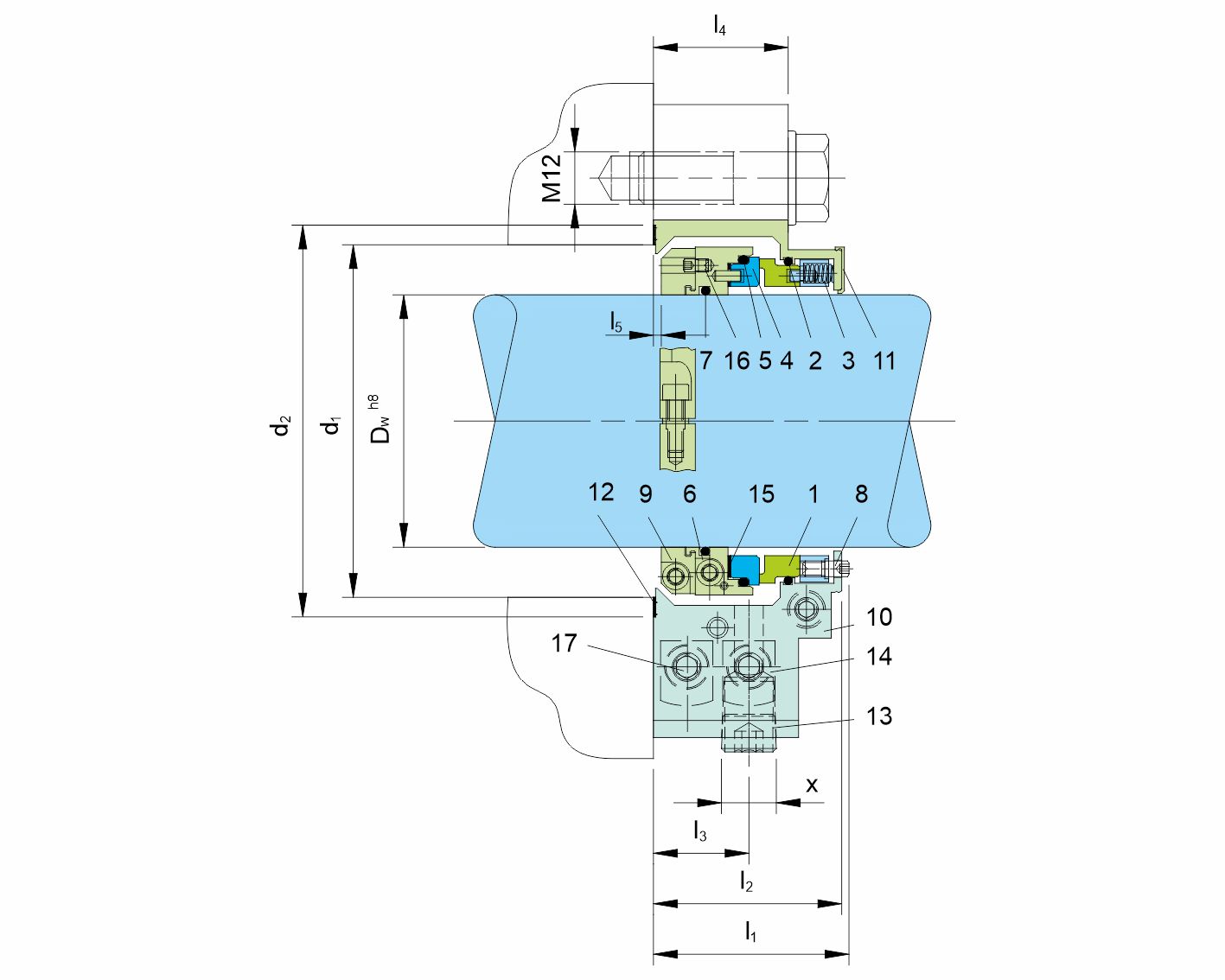

Details
Item No. Description
1 Seal face
2,5,7 O-ring
3 Spring
4 Seat
6 Driver
8 Thrust ring
9 Clamp collar
10 Housing
11 Assembly fixture
12,15 Gasket
13 Head screw plug
14 Mounting plate
16 Set screw
17 Socket head screw
