Mechanical Seals

GSPH-KD Dual Seal

API 682 4th Edition Category 1,2&3
Seal Type A (Rotating)
Configuration 3NC-BB (Non Contacting – Back-to-Back)

Product Description

  • API 682 Category 1, 2 and 3, Type A, Arrangement 3 seal
  • Dual seal in back-to-back configuration
  • Gas-lubricated
  • Independent of direction of rotation (with U-grooves)
  • Cartridge construction
  • Contact free operation, no friction
  • Rotary multiple springs

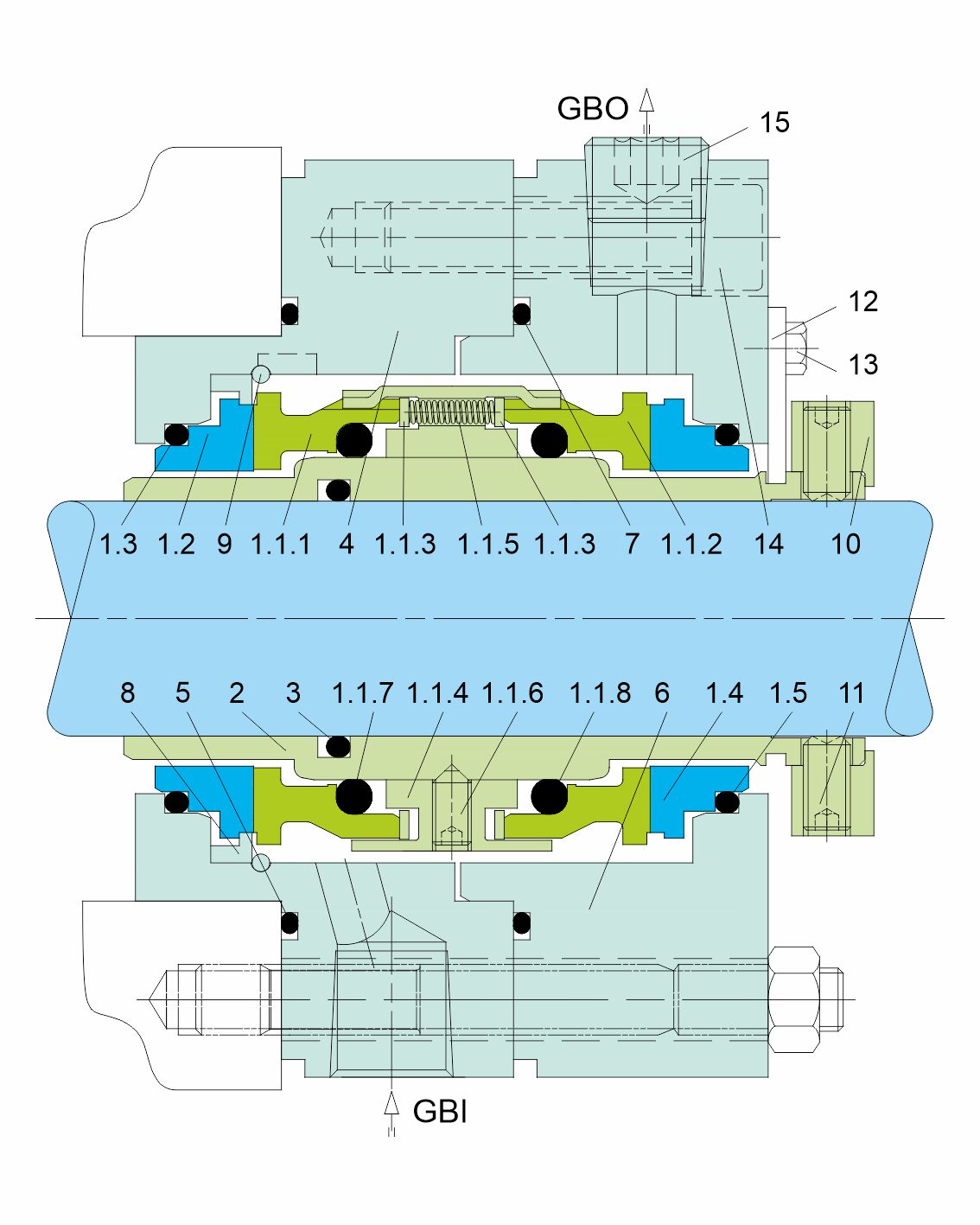

Details
Item No. Description
1.1.1,1.1.2 Seal ring
1.1.3 Thrust ring
1.1.4 Driver
1.1.5 Spring
1.1.6,11 Set screw
1.1.7,1.1.8,1.3,1.5,3,5,7 O-ring
1.2,1.4 Mating ring
2 Shaft sleeve
4 Intermediate gland
6 Gland
8 Washer
9 Retaining ring
10 Set ring
12 Assembly plate
13 Hexagon screw
14 HSH cap screw
15 Plug
GBI Gas Barrier IN
GBO Gas Barrier OUT
