CTXAPI-SN Single Seal

API 682 4th Edition Category 1
Seal Type A (Rotating)
Configuration 1CW-FX (Contacting Wet – FiXed throttle bushing)

Product Description

  • API 682 Category 1, Type A, Arrangement 1
  • Single seal configuration
  • Balanced design
  • Independent of direction of rotation
  • Cartridge construction
  • Robust construction with shrink-fitted seal face
  • Heavy duty solid seat design

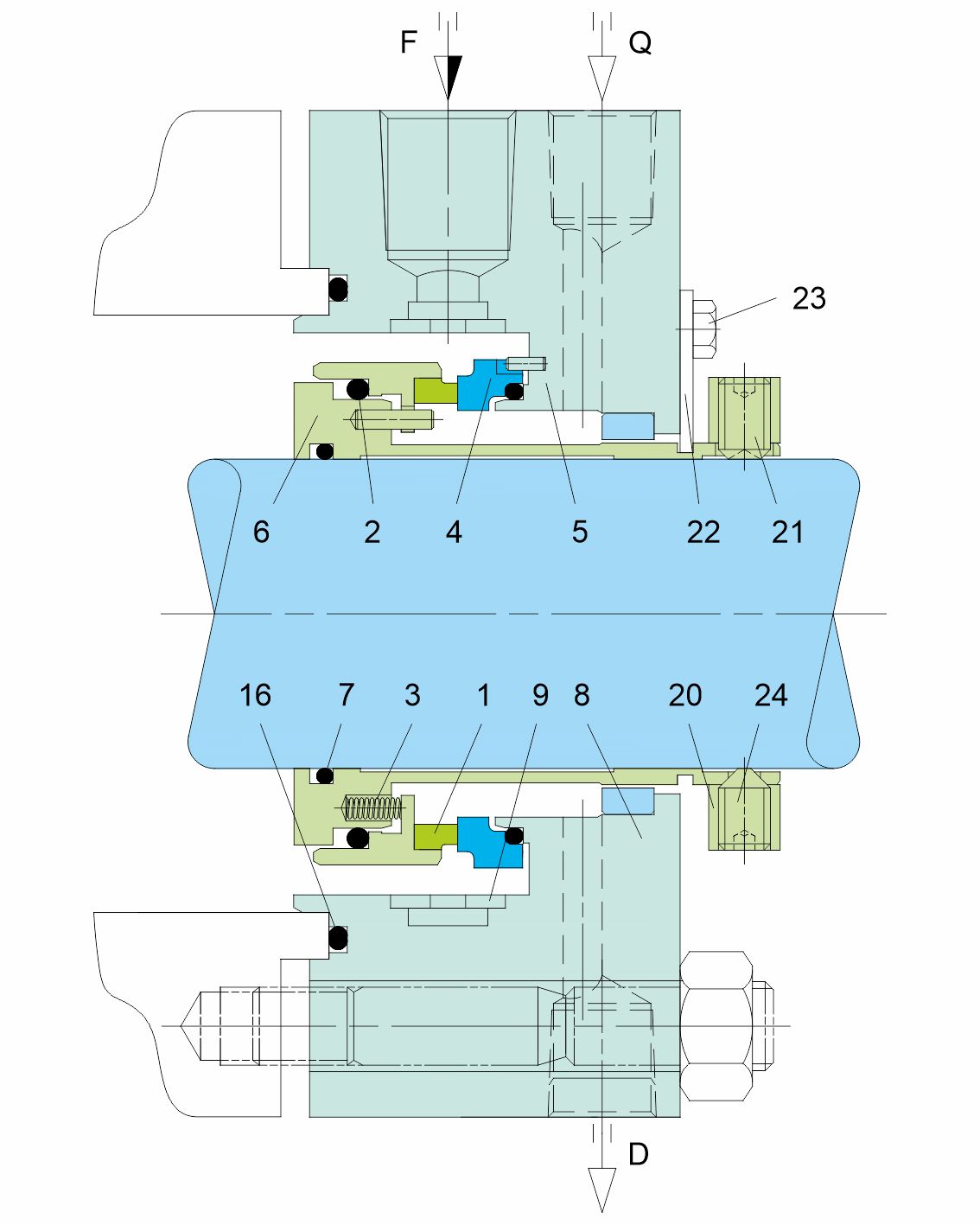

Details
Item No. Description
1 Seal ring
2,5,7,16 O-ring
3 Spring
4 Mating ring
6 Shaft sleeve
8 Gland
9 Multi-flow distributor
20 Set ring
21,24 Set screw
22 Setting plate
23 HSH cap screw
F Flush
Q Quench
D Drain
