U200N
Standard Mechanical Seals

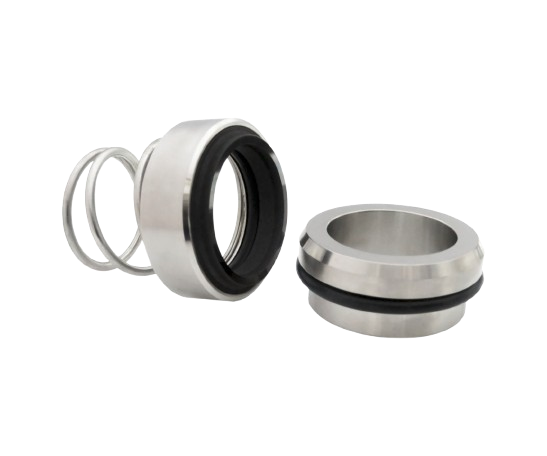

Product Description

  • Conical spring rotating
  • Dependent on direction of rotation
  • For plain shafts
  • Single seal
  • Unbalanced

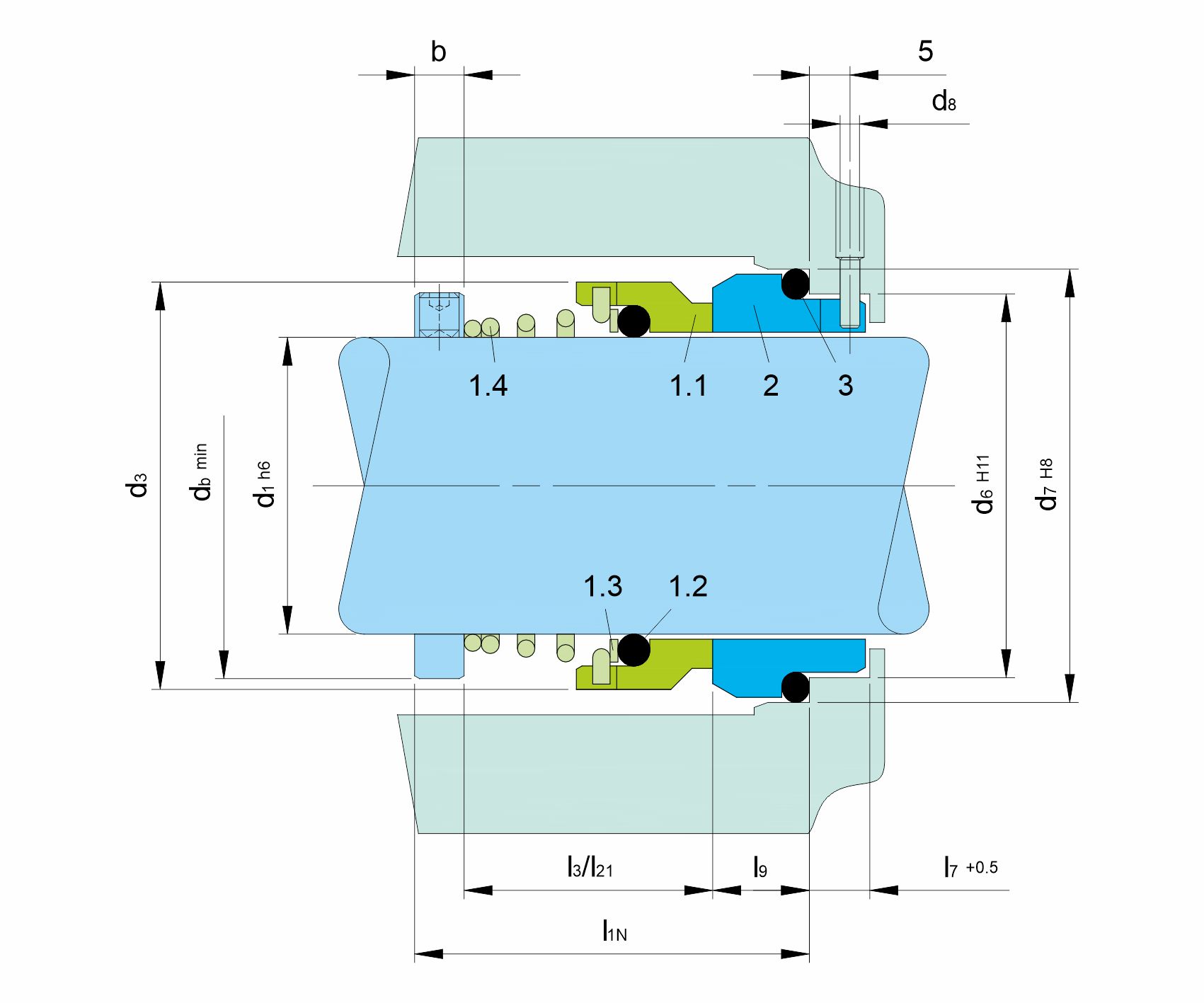

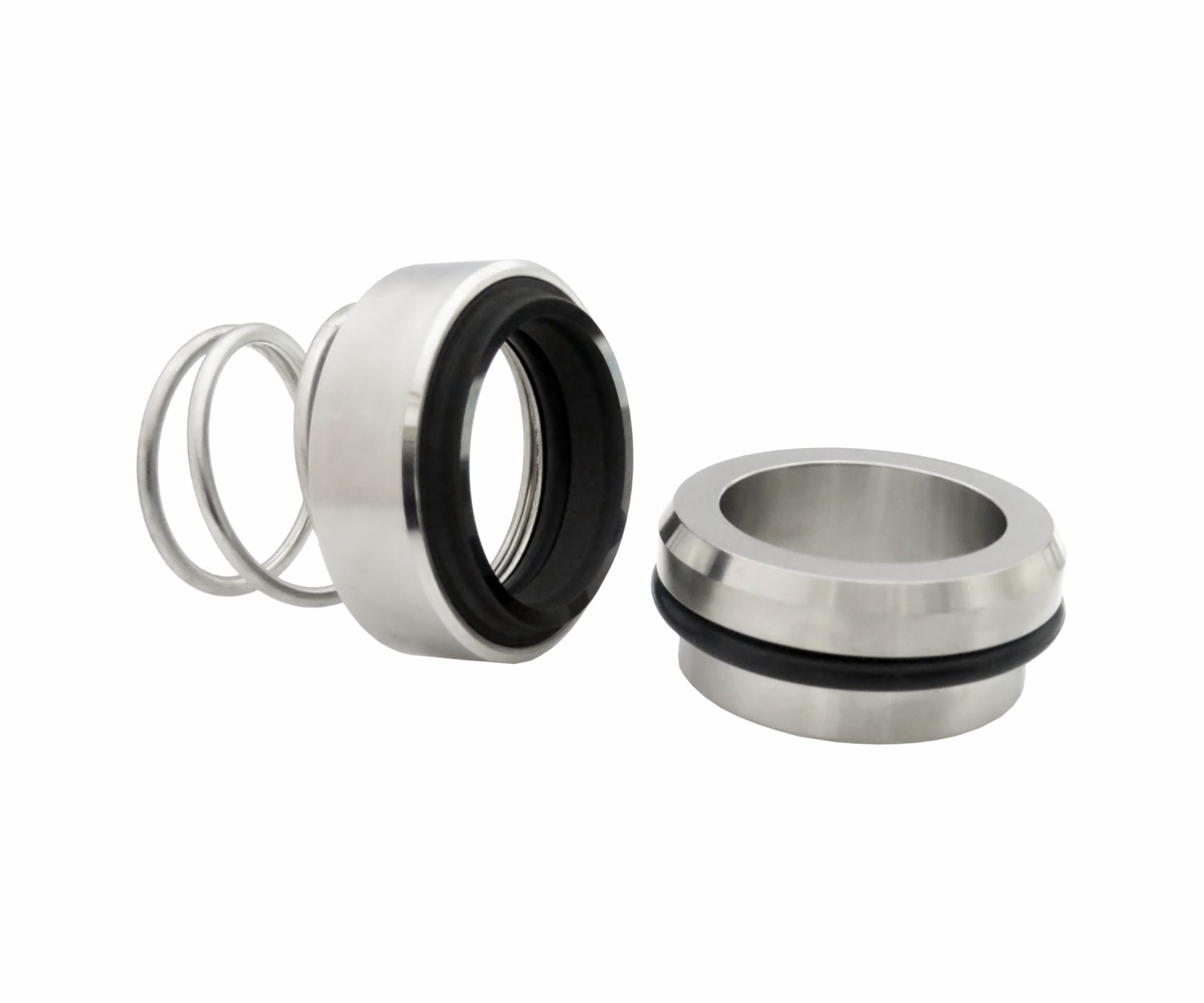

Details

Item Description
1.1 Seal face
1.2 O-Ring
1.3 Thrust ring
1.4 Right Hand Spring
1.4 Left Hand Spring
2 Seal (G9)
3 O-Ring

Technical Features

  • Economical seal solution
  • No damage of the shaft by set screws
  • Short installation length possible

Typical Industrial Applications

  • Chemical industry
  • Food and beverage industry
  • Food processing
  • Pulp and paper industry
  • Water and waste water technology

Standards

EN 12756

Materials

Seal face: Carbon graphite resin impregnated (B)
Seat G9: Silicon carbide (Q1, Q2),
Special cast CrMo steel (S), Aluminium oxide (V)

Performance Capabilities

Shaft diameter: d1 = Upto 38 mm (Upto 1.500’’)
Pressure: p1 = 10 bar (145 PSI)
Temperature: t = -20 °C ... 140 °C (-4 °F ... 355 °F)
Sliding velocity: Vg = 15 m/s (50 ft/s)
Permissible axial movement: 1.0 mm
