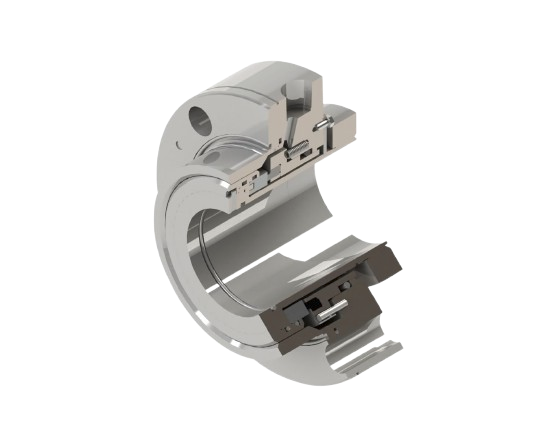

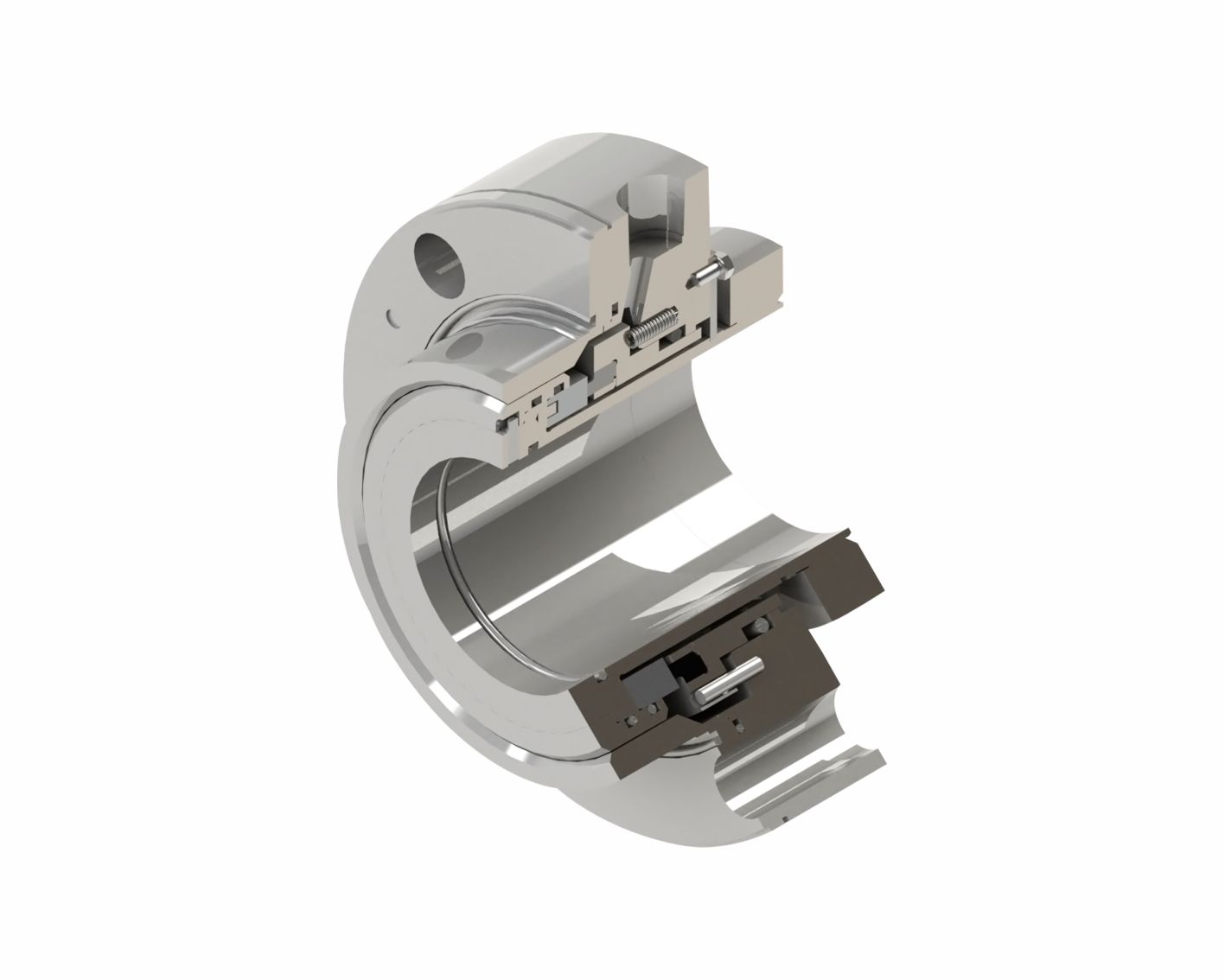

SBPV/SBFV

SBPV/SBFV

Product Description

  • Balanced
  • Cartridge design
  • Dependent of direction of rotation
  • Integrated pumping device
  • Multiple springs
  • Single seal
  • Stationary spring loaded unit
  • Shrink-fitted seal face

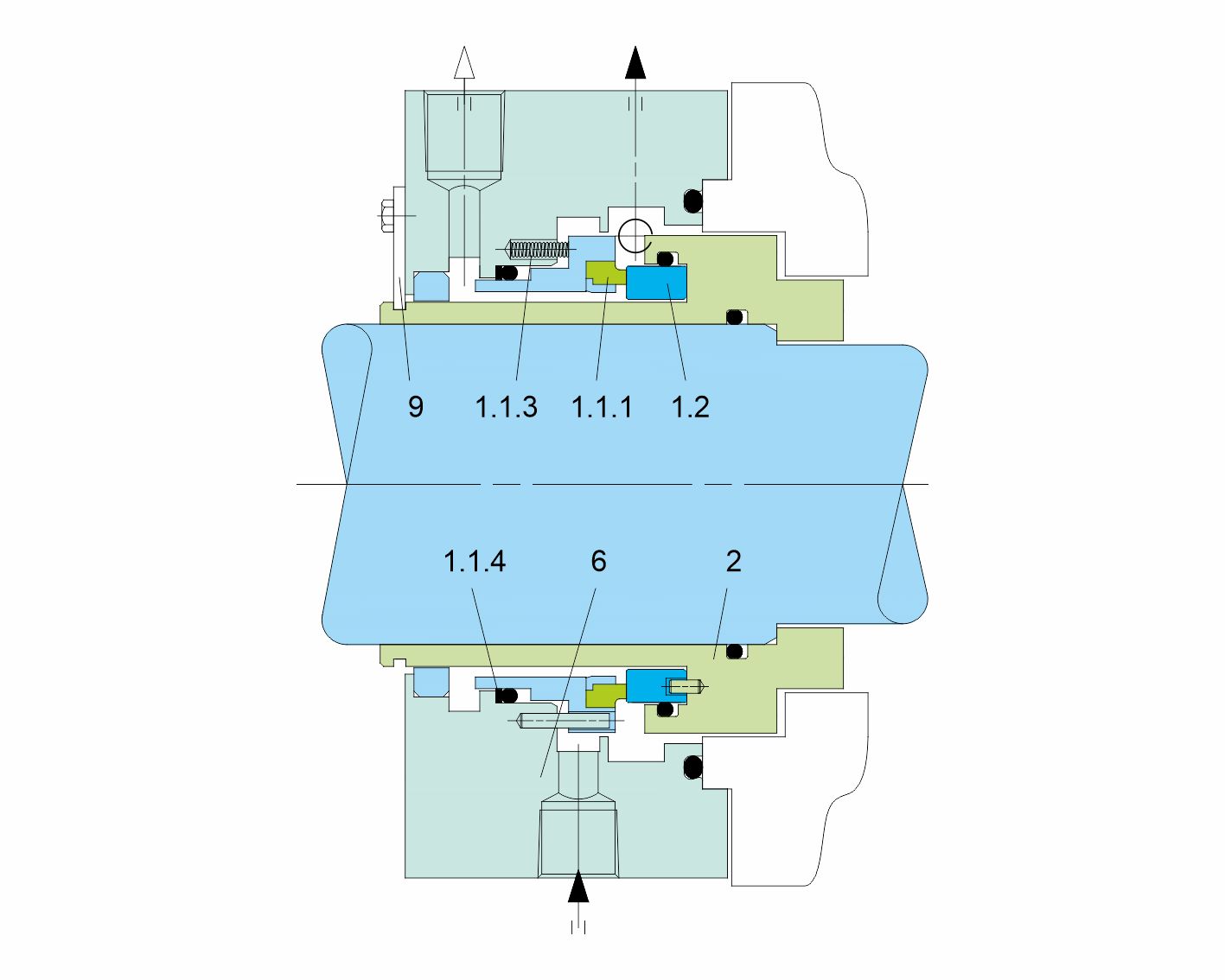

Details
Item No. Description
1.1.1 Seal face pressure-stabilized
1.1.3 Spring
1.1.4 Back-up ring
1.2 Seat
2 Seat housing with pumping screw (F) or pumping ring (P)
6 Cover
9 Assembly fixture
14 Shirnk disk
