MF
Seal Supply Systems

Product Description

  • MF filters are inline filters for installation
    inside pipelines.
  • Magnetic filters are used in seal supply
    systems and any other such systems in
    which a liquid has to be cleaned of magnetic
    and non-magnetic impurities up to a certain
    size.
  • The combination of magnetic rod and filter
    element guarantees a high level of efficiency.

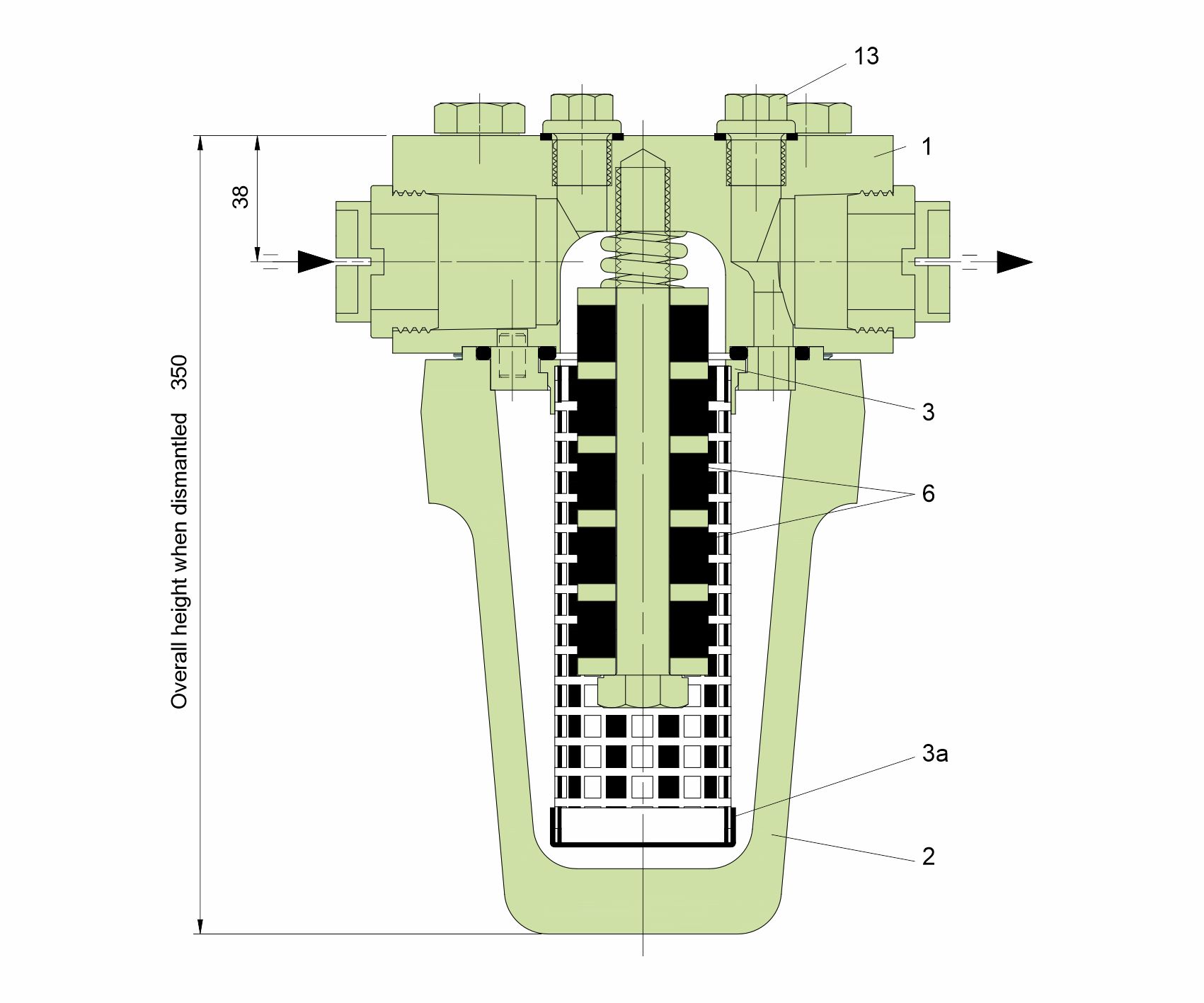

Details

Item No. Description
1 Filter cover
2 Filter barrel
3 Element insert
3a Internal mesh
6 Ring magnet
13 Ring magnet

Technical Features

  • All pressure-loaded parts are forged
    components.
  • Combination device: magnetic filter and filter
    element
  • Housing can be dismantled: simple
    maintenance and cleaning.
  • Internal mesh to protect the filter element for
    reverse currents.
  • Venting screws in the filter inlet and outlet can
    be used as connections for maintenance or
    differential pressure indicator.

Typical Industrial Applications

  • Chemical industry
  • Oil and gas industry
  • Petrochemical industry
  • Power plant technology
  • Refining technology

Functional Description

The magnetic rod is positioned in the filter in such a way that it catches magnetic particles flowing past in the medium on all sides. Partial coarse filtration is provided by the incorporated filter element.
