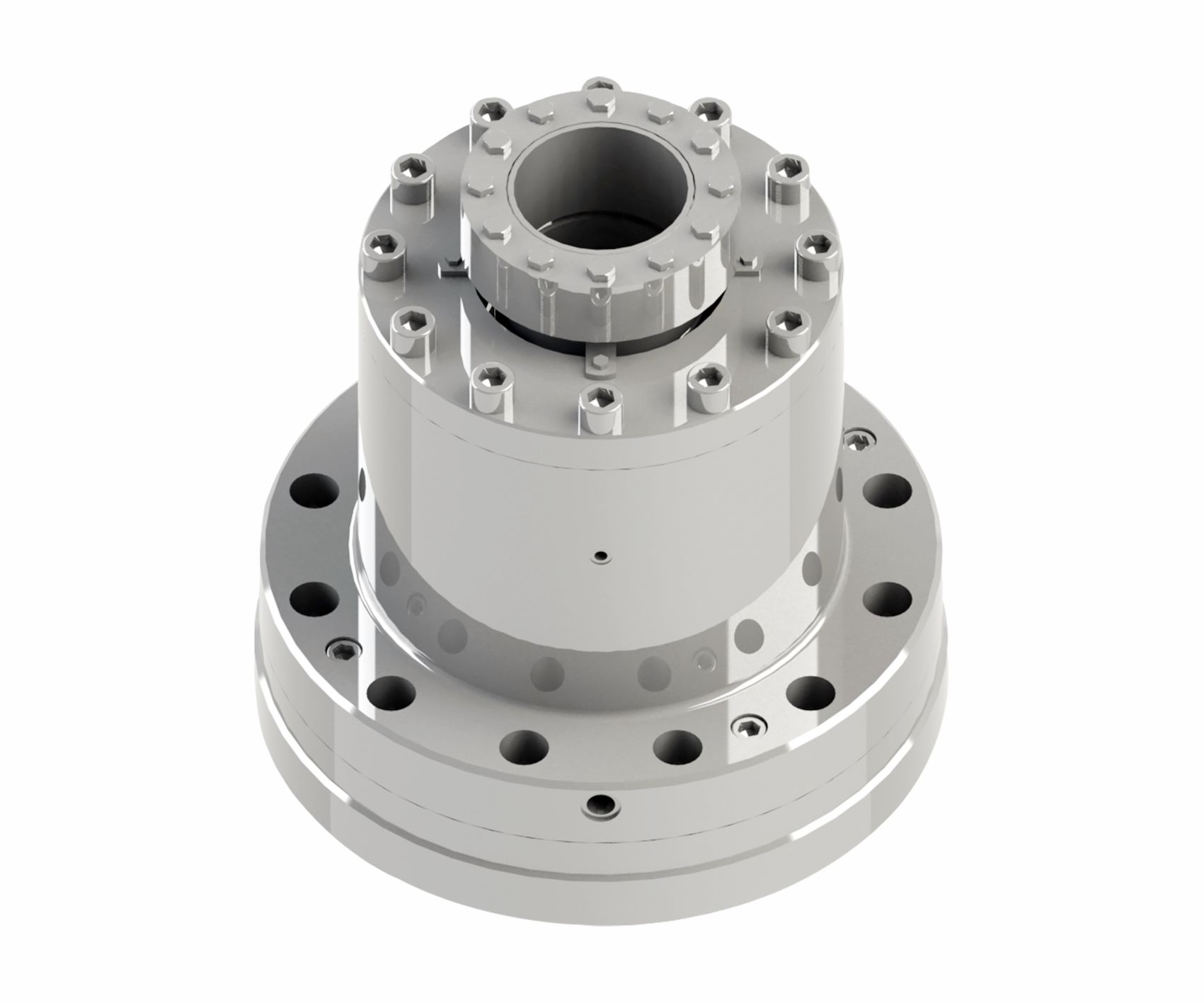

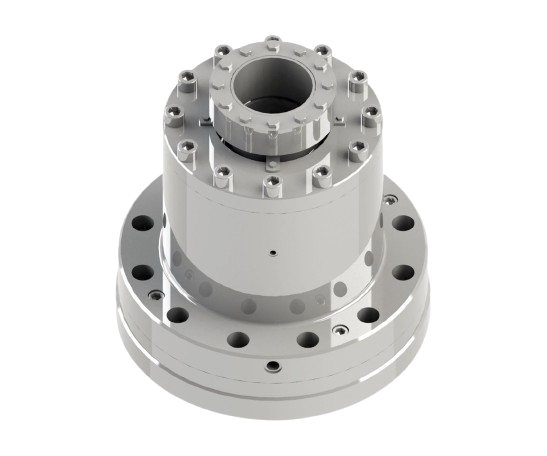

BSHLU-D

Agitator Seals

Product Description

  • Balanced
  • Cartridge unit
  • Double seal
  • For top drive entries
  • Independent of direction of rotation
  • Liquid-lubricated
  • Multiple springs rotating
  • On request with integrated bearing

Details

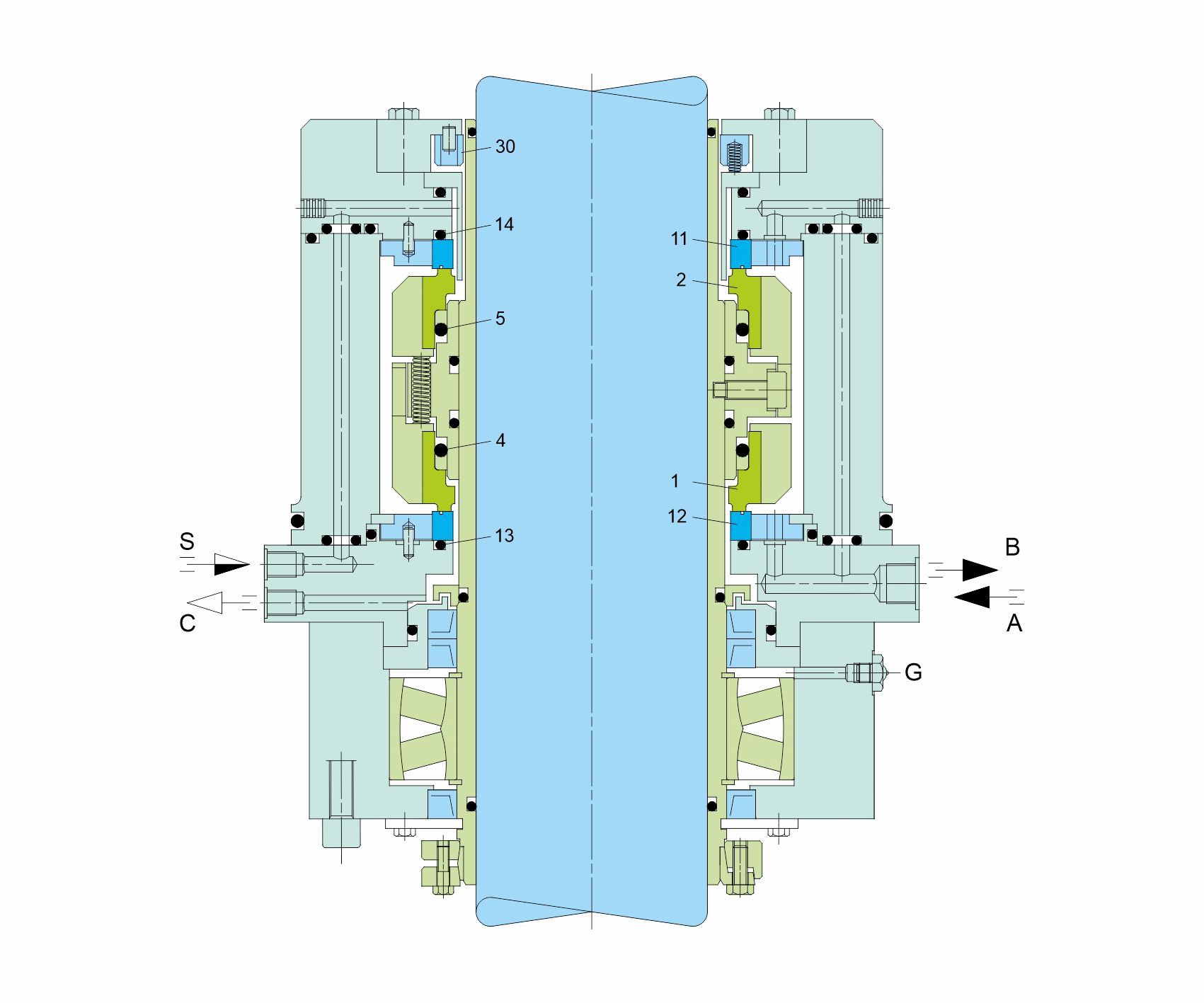

Item No. Description
1 Seal face, atmosphere side
2 Seal face, product side
4, 5, 13, 14 O-Ring
11 Seat, product side
12 Seat, atmosphere side
13 Throttle ring

Technical Features

  • Connection dimensions to customer's requirements
  • Due to the hydraulic conditions, product
  • pressure as well overlaying barrier pressure closes the seal
  • Floating throttle ring on the product side
  • High pressure seal for process orientated solutions
  • High reliability and long service life
  • Ready-to-fit and factory-tested units

Typical Industrial Applications

  • Chemical industry
  • Pharmaceutical industry
  • Suitable for all media
  • Agitators
  • Dryers
  • Mixers
  • Filter
  • Special rotating equipment

Notes

Options:
Cooling or heating flange
Leakage drain, flush or heating flange
Leakage drain or flush

Materials

According to application and customer's specification

Performance Capabilities

Shaft diameter: dw = ... 400 mm ( ... 15.75")
Pressure: p1 = vacuum ... 60 bar (870 PSI)
Temperature: t = -40 °C ... +200 °C (-40 °F ... +392 °F)
Sliding velocity: vg = 0 ... 5 m/s (0 ... 16 ft/s)
For applications beyond this range, please enquire.
